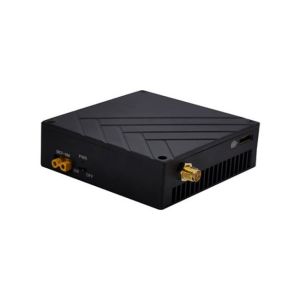

C50HPT Drone Video Transmitter & Receiver Specific...
1. Introduction
C50HPT is a mini HD Video and Duplex data transmission COFDM system for UAV. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground (40-70km) and low delay(12-25ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.
2. Features
3. Parameters
| Wireless | |
| Frequency Range | 2.4GHZ (2.400-2.482GHZ) |
| Bandwidth | 1-8Mhz |
| RF Power | 33dBm (Air to Ground 40-70km) |
| Error Detection | LDPC FEC |
| Latency | ≤15-30ms |
| Receive Sensitivity | -100dBm ~ -90dBm |
| Video | |
| Input/output | Onboard High Definition Multimedia Interface mini TX/RX or FFC Convert to High Definition Multimedia Interface-A TX/RX |
| Color Space | Default 4:2:0 optional: 4:2:2/4:4:4 |
| Compressed Format | AVC, H.265, TS |
| Interface | |
| HD media Interface | High Definition Multimedia Interface mini/Flexible Flat Cable(FFC) |
| Video Input/output Interface | High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX |
| Antenna | 1T1R TX: 7db (25cm Omni Antenna) RX: 10db (Omni Antenna) |
| Transmitter Interface | 1080P 60 High Definition Multimedia Interface Mini RX |
| 100Mbps Ethernet Port | |
| S1 TTL bidirectional serial port | |
| S2 TTL bidirectional serial port | |
| SMA RF | |
| Receiver Interface | 1080P 60 High Definition Multimedia Interface Mini RX |
| 100Mbps Ethernet Port | |
| S1 TTL bidirectional serial port | |
| S2 TTL bidirectional serial port | |
| SMA RF | |
| Indicator Light | High Definition Multimedia Interface input/output indicator light |
| Transmitting and receiving indicator light | |
| Video board indicator light | |
| Power light | |
| Interface | Power input interface × 1 |
| Antenna interface × 1 | |
| RS232 Bidirectional Port × 1(With isolation protection, resistance to 3000V pulse voltage) | |
| Ethernet to USB / RJ45 on Windows × 1 | |
| System | |
| Start-up time | 25s |
| Power Consumption | TX:10Watts/Rx:7Watts |
| Power supply | DC 7- 18V (DC16.8V advised) |
| Transmission Mode | point to point / point to multipoint |
| Transmission Distance | Air to ground 40-70km |
| Adjustment mode of bitrate | Software adjustmentt |
| Security | WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256 |
| Total delay of the system | 15-30ms of 1080P60/720P60 coding and decoding. |
| Two-way function | Integrate multiple radio links, SBUS/PPM/TTLS 1 pro communication module. |
| Physical | |
| Dimension | 24mm×73mmx76mm |
| Weight | Tx: 208g, Rx: 100g |
| Operating temperature | -40°C ~ 85°C |
| Storage temperature | 55°C ~ 100°C |
| Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
