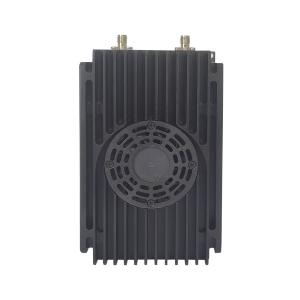

100-150km Compact and Portable COFDM HD Transmitter with Sbus/Ttl/232/Mavlink Telemetry Cofdm System
1. Feature
2. Specification
| Wireless | |
| Technology | TDD-OFDM/MIMO/1T2R |
| Modulation | QPSK / 16QAM / 64QAM |
| Data Rate | 24Mbps@10MHz(Peak) |
| Frequency Range | 1428~1448MHz(Standard) |
| 2401~2481(Optional) | |
| 806~826Mhz(Optional) | |
| Bandwidth | 5MHz / 10MHz / 20MHz |
| TX Power | 40dBm ± 2 |
| System | |
| Serial Port | 1TTL + 1 RS232 + 1S.BUS |
| Video Port | 2 ETH or 1ETH + 1 SDI / HDMI(Customized) |
| Security | AES128 Encryption |
| Power | DC12V~24V Power Supply ≤30W @ DC12V Power Consumption(Air) |
| Interface | |
| RF Antenna | SMA×2 |
| Serial Port Interface | JST×2 |
| S.BUS Interface | JST×1 |
| Video Port Interface | JST(ETH) × 2 or JST(ETH) × 1 + SDI/HDMI × 1(Cus.) |
| Power Input | XT30 |
| Physical | |
| Dimension | ≤122 x 76 x 57mm(Air) |
| Weight | 251g(Air)+1000g(Ground) |
3. Accessories
OMNI Antenna for Air Unit × 2
OMNI Antenna for Ground Unit × 1
Directional Antenna for Ground Unit × 1
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)
Serial Cable × 2
S.BUS Cable × 1
XT30 Power Cable × 1
VTA-Manual (Manual Tracking Antenna System) × 1
