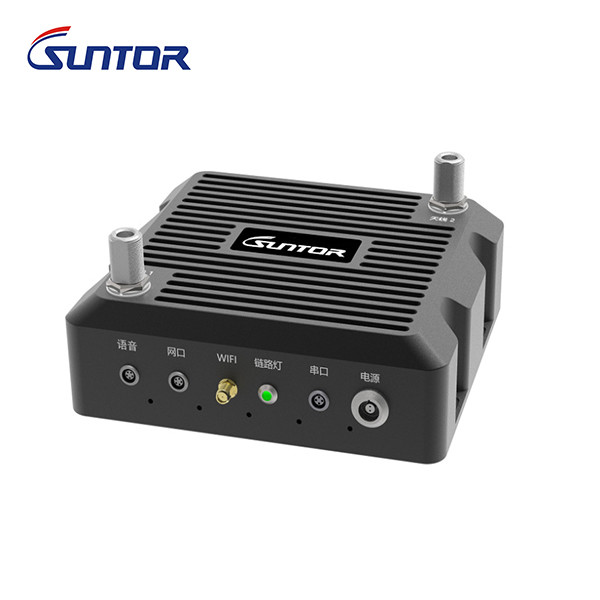

Centerless Wilreless Radio Transceivers For Robots / UAV / UGV / USV
1. Quick detail Of Wireless Data Links for drones,UAV,UGV,USV
--- Typical Working frequency: 1300-1500GHZ(200-1500MHz can be customized)
--- Bandwidth: 5/10/20MHz
--- Transmitting powe: 4W
--- Power supply: DC15-36V
--- Transmission Rate: 90Mbps
--- NLOS distance: 300-1000m
--- LOS distance: over 10KM
--- Weight: 2KG
--- Safe/Encryption: DES/AES128/AES256(Optional)
2. Description of Wireless Data Links for drones,UAV,UGV,USV
Unmanned system mesh network radio, small size, light weight, easy to install, especially suitable for UAVs, unmanned vehicles, unmanned boats, robots, and other application scenarios with lightweight networking requirements.
Fast network access and automatic multi-hop relay can quickly form an interconnected three-dimensional network with handheld individual soldier systems, vehicle systems and surrounding base station networking equipment to achieve efficient collaboration.
3. Specification of Wireless Data Links for drones,UAV,UGV,USV
| System Parameter | ||
| Operating frequency | 1300~1500MHz | |
| Bandwidth | 5/10/20MHz,Flexible and configurable | |
| Transmission system | COFDM | |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) | |
| Transmission capacity | Peak rate 52Mbps@20MHz,can be choose 100Mbps | |
| RF Transmitted power | 4W | |
| Receive Sensitivity | -100dBm@5MHz | |
| Video input | Support IP network video input and WIFI video access(HDMI/AV need to be customized) | |
| Networking function | Networking capable | ≥64 nodes |
| Networking hops | >10 hops | |
| Network topology | Centerless network, star network, chain network, mesh network, etc | |
| Encryption mode | DES/AES128 / AES256 (Optional) | |
| Power supply mold | DC 24-33V supply | |
| Power Consumption | ≤42W | |
| Equipment interface | ||
| Antenna interface | N-K×2 | |
| WIFI interface | SMA-K | |
| Series interface | Aviation interface | |
| Ethernet interface | Aviation interface | |
| Power interface | Aviation interface | |
| Physical indicators | ||
| Dimension | ≤192×172×86mm(include the interface) | |
| Equipment Weight | ≤2Kg | |
| Protection degree | IP65 | |
| Working temperature | -40℃～+65℃ | |
Q1. Can I have a sample order for wireless data Links?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A2: Sample needs 5-7 days, mass production time needs 1-2 weeks.
Customized one will based on the requirements and quantity.
Q3. Do you have any MOQ limit for Unmanned System Radio?
A3: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT.Airline and sea shipping also optional.
Q5. Is it OK to print my logo on COFDM Transmitter product?
A5: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
