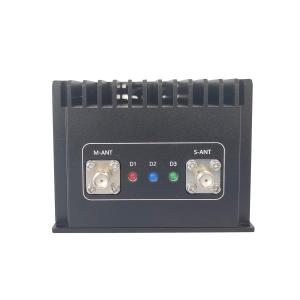

CD300Pro Drone Video Transmission Radio
1. Feature
2. Specification
| Wireless | |
| Technology | TDD-OFDM / MIMO / 1T2R |
| Modulation | QPSK / 16QAM / 64QAM |
| Data Rate | 24Mbps@10MHz(Peak) |
| Frequency Range | 1428~1448MHz(Standard) |
| 2401~2481(Optional) | |
| 806~826Mhz(Optional) | |
| Bandwidth | 5MHz/10MHz/20MHz |
| TX Power | 43dBm ± 2 |
| RX Sensitivity | -99dBm @ 5MHz |
| System | |
| Serial Port | 1TTL+1 RS232+1 S.BUS |
| Video Port | 2 ETH or 1 ETH +1 SDI/HDMI(Customized) |
| Security | AES128 Encryption |
| Power | DC12V~24V Power Supply ≤60W @ DC12V Power Consumption(Air) |
| Interface | |
| RF Antenna | SMA×2 |
| Serial Port Interface | JST×2 |
| S.BUS Interface | JST×1 |
| Video Port Interface | JST×(ETH)×2 or JST(ETH) × 1 + SDI / HDMI × 1(Cus.) |
| Power Input | XT30 |
| Physical | |
| Dimension | ≤130 x 80 x 60mm(Air) |
| Weight | ≤800g (Air) |
3. Accessories
